Περιγραφή |
Mητρική κάρτα AMD B450 Ultra Durable Motherboard with Digital VRM Solution, GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, RGB LED Strip Header, CEC 2019 Ready. Τύπος: Micro ATX Form Factor; 24.4cm x 21.5cm.Επεξεργαστές: AM4 Socket: Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors.Chipset: AMD B450.Μνήμες: 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory, Dual channel memory architecture, Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules.Υποστήριξη δίσκων: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10.Θύρες επέκτασης: 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot.Εσωτερικές συνδέσεις: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x CPU cooler LED strip/RGB LED strip header, 1 x USB 3.1 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only), 1 x serial port header, 1 x Clear CMOS jumper.Εξωτερικές συνδέσεις: 1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks.Γραφικά: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz.Ενσωματωμένη κάρτα ήχου: Realtek ALC887 codec.Ενσωματωμένη κάρτα δικτύου: Realtek GbE LAN chip (10/100/1000 Mbit).Συμβατό λειτουργικό σύστημα: Microsoft Windows 7, 10 64-bit.Εγγύηση: 3 χρόνια. DOA 7 ημερών
|

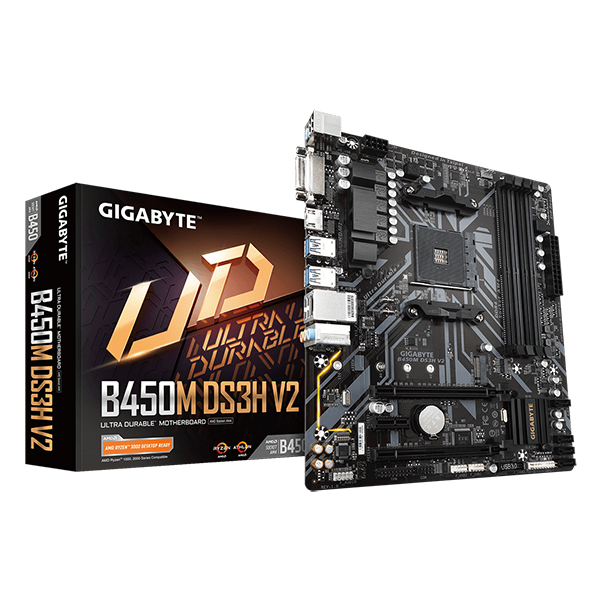

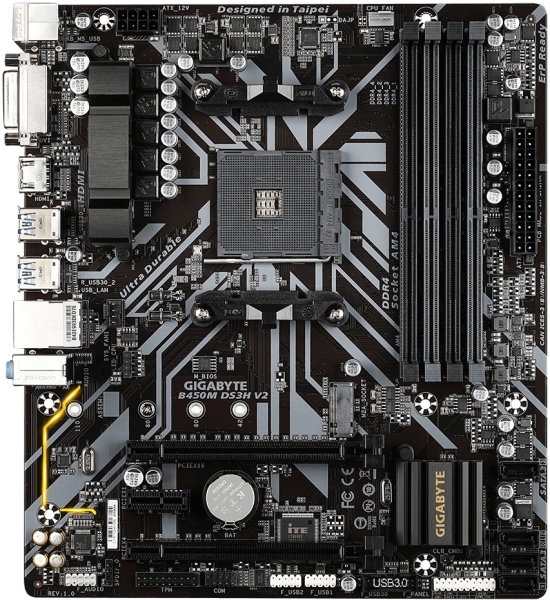

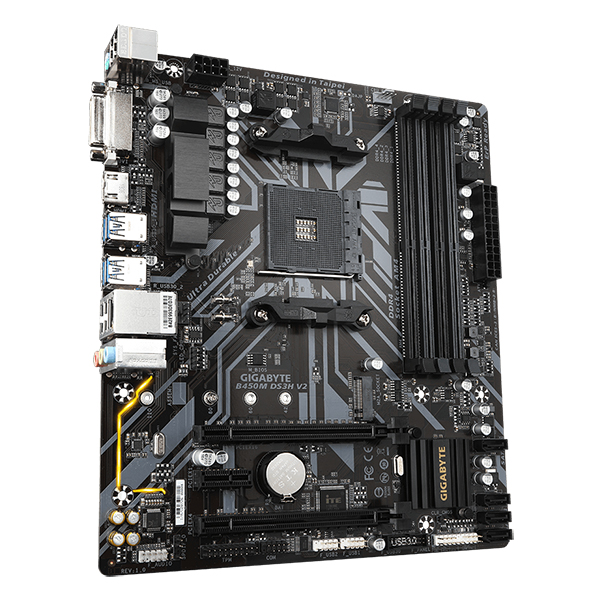

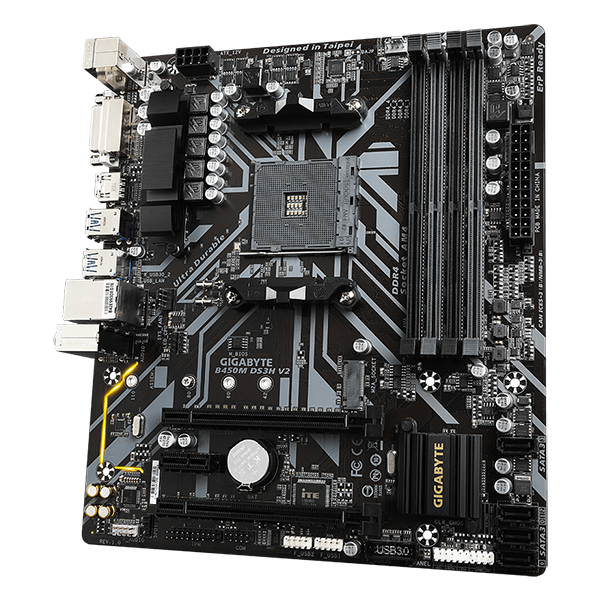

ΜΗΤΡΙΚΗ GIGABYTE B450M DS3H V2 (PER.527534)
Κατηγορία: ΜΗΤΡΙΚΗ ΚΑΡΤΑ • GIGABYTE στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ Mητρική κάρτα AMD B450 Ultra Durable Motherboard with Digital VRM Solution, GIGABYTE Gaming LAN and Bandwidth Management, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, RGB LED Strip Header, CEC 2019 Ready. • Τύπος: Micro ATX Form Factor; 24.4cm x 21.5cm. • Επεξεργαστές: AM4 Socket: Support for AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors. • Chipset: AMD B450. • Μνήμες: 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory, Dual channel memory architecture, Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules. • Υποστήριξη δίσκων: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, and RAID 10. • Θύρες επέκτασης: 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot. • Εσωτερικές συνδέσεις: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x CPU cooler LED strip/RGB LED strip header, 1 x USB 3.1 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only), 1 x serial port header, 1 x Clear CMOS jumper. • Εξωτερικές συνδέσεις: 1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks. • Γραφικά: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. • Ενσωματωμένη κάρτα ήχου: Realtek ALC887 codec. • Ενσωματωμένη κάρτα δικτύου: Realtek GbE LAN chip (10/100/1000 Mbit). • Συμβατό λειτουργικό σύστημα: Microsoft Windows 7, 10 64-bit. • Εγγύηση: 3 χρόνια. DOA 7 ημερών
|
|
|
