Κατηγορία:
ΜΗΤΡΙΚΗ ΚΑΡΤΑ •

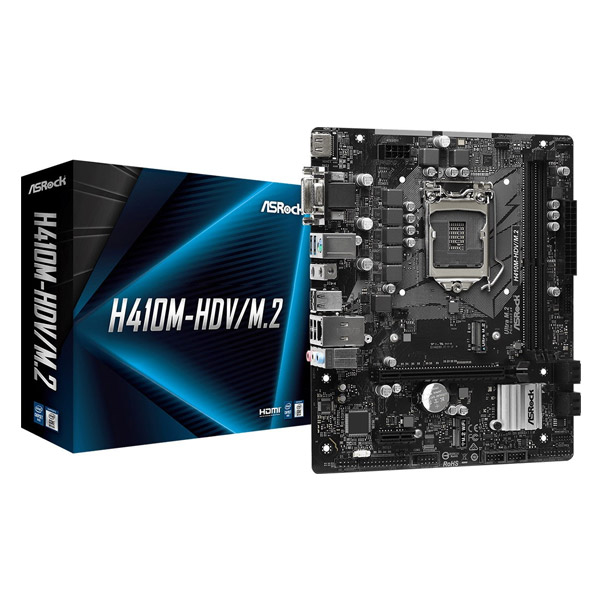

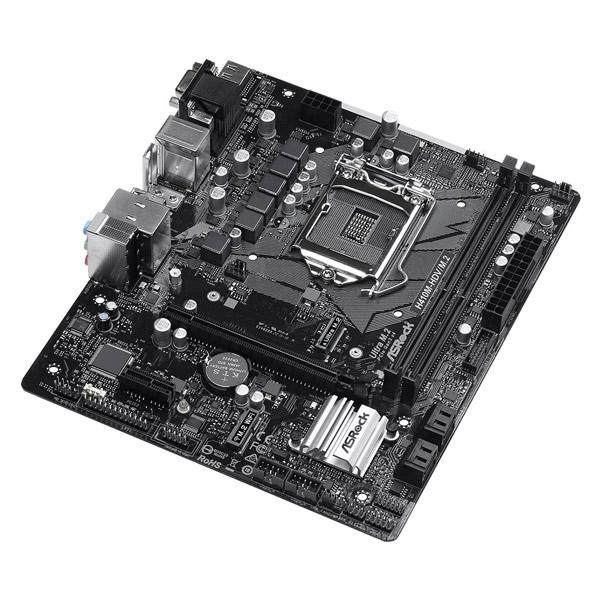

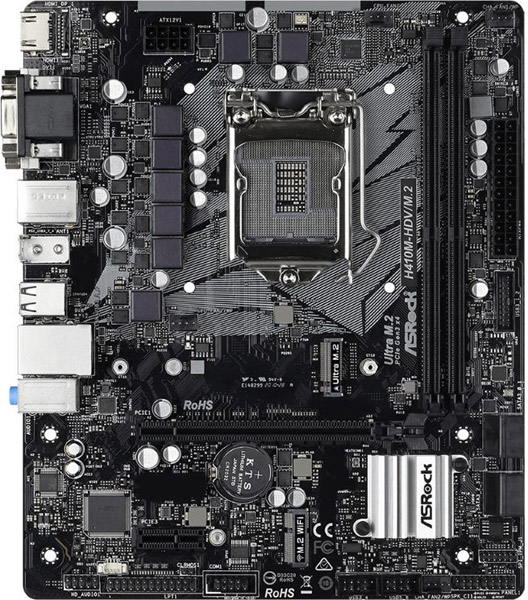

ASROCK στην κατηγορία ΜΗΤΡΙΚΗ ΚΑΡΤΑ Μητρική ASROCK H410M-HDV/M.2.
•
Τύπος: Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm.
•
Επεξεργαστές: Supports 10th Gen Intel Core Processors (Socket 1200).
•
Chipset: Intel H410.
•
Μνήμες: 2 x DDR4 DIMM Slots, Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory, Supports ECC UDIMM memory modules (operate in non-ECC mode), Max. capacity of system memory: 64GB.
•
Υποστήριξη δίσκων: 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled, 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s).
•
Θύρες επέκτασης: 1 x PCI Express 3.0 x16 Slot, 1 x PCI Express 3.0 x1 Slot, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module.
•
Εσωτερικές συνδέσεις: 1 x Print Port Header, 1 x COM Port Header, 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection).
•
Εξωτερικές συνδέσεις: 1 x Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port, 1 x HDMI Port, 4 x USB 2.0 Ports (Supports ESD Protection), 2 x USB 3.2 Gen1 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in / Front Speaker / Microphone.
•
Γραφικά: Integrated Graphics Processor.
•
Ενσωματωμένη κάρτα ήχου: 7.1 CH HD Audio (Realtek ALC887 Audio Codec).
•
Ενσωματωμένη κάρτα δικτύου: Gigabit LAN 10/100/1000 Mb/s, Giga PHY Intel I219V.
•
Συμβατό λειτουργικό σύστημα: Microsoft Windows 10 64-bit.
•
Εγγύηση: 3 χρόνια.
DOA 7 ημερών
