GALILEOSKY 7.0 WI-FI GPS TRACKER

Κατηγορία: GPS •
GALILEOSKY στην κατηγορία GPS

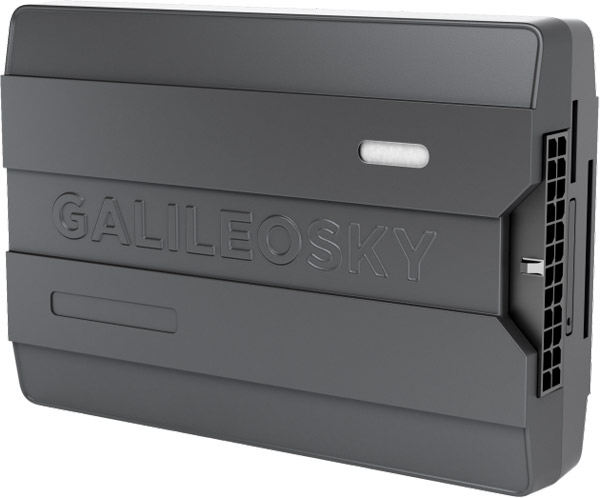

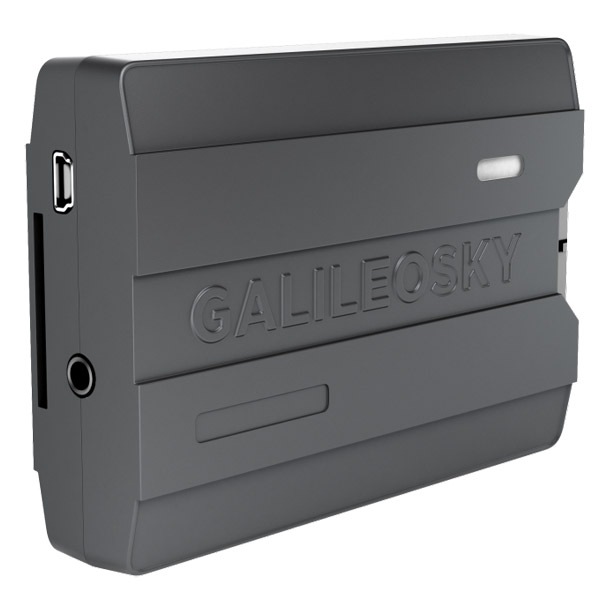

Galileosky 7.0 Wi-Fi is a lightweight and compact GPS / GLONASS vehicle tracking device in a plastic housing with inbuilt antennas. Its main distinctive feature is the support of data transmission via Wi-Fi channel. Additional advantage of this unit is the availability of additional fasteners for easy mounting. The tracker is able to transmit route data and the vehicle condition status even in areas with either no or poor GSM coverage. The support of data transmission over a Wi-Fi network is particularly relevant for the remote from urban infrastructure territories. For example, this would be a perfect solution for the agricultural and extractive industries.

Broad functionality support in monitoring software
With Easy Logic self-programming technology, you can implement your own terminal operation algorithms in both the transport monitoring area and remote management of stationary objects. Thus, you can set up sending SMS notifications when starting the engine, or automate the operation modes of the heating equipment in the building. Galileosky 7.0 Wi-Fi has extensive capabilities for connecting additional sensors and devices by supporting RS232, RS485 and 1-Wire protocols. So, with the help of RFID tags and iButton keys it is possible to implement the driver identification, automatically keep track of work and rest of the personnel, control fuel consumption and avoid fuel discharge. The installation of weight sensors will prevent overloading of equipment or theft of goods, as well as ensure receiving customized reports indicating the location, time and weight of the loading. By connecting to the CAN bus you can get information about the engine speed, total mileage, coolant temperature and other parameters of the vehicle. Connection of additional sensors will allow obtaining data on doors opening, tire pressure. What ’s more, the integration with refrigerator equipment will ensure control of temperature and humidity of the transported goods.

Easy and handy mounting
Thanks to the internal antennas, the device is easy to install in the car. It is also possible to make a hidden installation. Thanks to the design of the unit, the risk of damage or twisting of antennas is significantly reduced. When placing an order the extended equipment set with the additional fasteners is available.


• GSM modem: GSM 850/900/1800/1900.
• Types of aerials (GLONASS/GPS, GSM): Internal.
• Data transmission channel: GPRS/SMS.
• Coordinates determination accuracy: 5 m.
• Support: 2G, Wi-Fi.
• Internal memory capacity: 16 MB.
• Maximum number of points in the internal memory: 450000.
• External memory capacity: 256 GB.
• Number of slots for SIM-cards: 2.
• Interface of connection with PC: USB 2.0.
• Digital interfaces: CAN, USB, RS485, RS 232, 1-Wire.
• Inputs & Outputs: Analog inputs x 6, Transistor outputs x 4, RS232 digital inputs x 2, RS485 digital inputs x 1, Availability of 1-Wire digital input, Opportunity to connect microphone, Opportunity to connect speaker.
• Protection: IP54.
• Battery: Li-Ion, 600 mA.
• Dimensions: 97x68x22 mm.
• Weight: 150 g.
• Color: Black.
• Warranty: 1 year.
